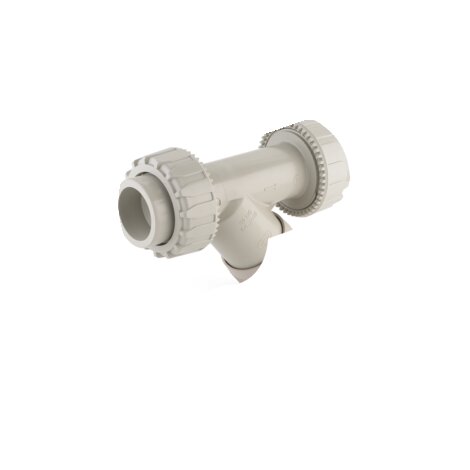

RVUOAM - Sediment strainer
Sediment strainer with female union ends and fixed flanges, drilled ANSI B16.5 cl.150 #FF
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.A max | B | product.detail.attribute.F | product.detail.attribute.f | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVUOAM012E | PP-H system | Armatury | RV DN 10÷100 | 1/2" | 15 | 10 | 125 | 72 | 60 | 16 | 175 | 248 |
| RVUOAM034E | PP-H system | Armatury | RV DN 10÷100 | 3/4" | 20 | 10 | 145 | 84 | 70 | 16 | 214 | 295 |
| RVUOAM100E | PP-H system | Armatury | RV DN 10÷100 | 1" | 25 | 10 | 165 | 95 | 79 | 16 | 237 | 397 |
| RVUOAM114E | PP-H system | Armatury | RV DN 10÷100 | 1"1/4 | 32 | 10 | 190 | 111 | 89 | 16 | 253 | 625 |
| RVUOAM112E | PP-H system | Armatury | RV DN 10÷100 | 1"1/2 | 40 | 10 | 210 | 120 | 98 | 16 | 289 | 825 |
| RVUOAM200E | PP-H system | Armatury | RV DN 10÷100 | 2" | 50 | 10 | 240 | 139 | 121 | 19 | 333 | 1250 |
FKM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.A max | B | product.detail.attribute.F | product.detail.attribute.f | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVUOAM012F | PP-H system | Armatury | RV DN 10÷100 | 1/2" | 15 | 10 | 125 | 72 | 60 | 16 | 175 | 248 |
| RVUOAM034F | PP-H system | Armatury | RV DN 10÷100 | 3/4" | 20 | 10 | 145 | 84 | 70 | 16 | 214 | 295 |
| RVUOAM100F | PP-H system | Armatury | RV DN 10÷100 | 1" | 25 | 10 | 165 | 95 | 79 | 16 | 237 | 397 |
| RVUOAM114F | PP-H system | Armatury | RV DN 10÷100 | 1"1/4 | 32 | 10 | 190 | 111 | 89 | 16 | 253 | 625 |
| RVUOAM112F | PP-H system | Armatury | RV DN 10÷100 | 1"1/2 | 40 | 10 | 210 | 120 | 98 | 16 | 289 | 825 |
| RVUOAM200F | PP-H system | Armatury | RV DN 10÷100 | 2" | 50 | 10 | 240 | 139 | 121 | 19 | 333 | 1250 |
- Connection system for weld, threaded and flanged joints
- Strainer assembled on an easily removed support that facilitates cleaning or replacement
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
