SIV
SOLVENT WELD FITTINGS - EQUAL SOCKET

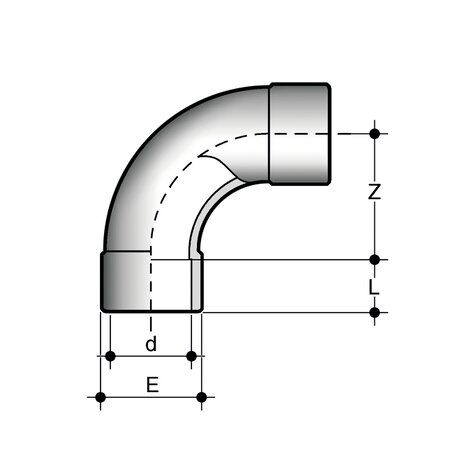

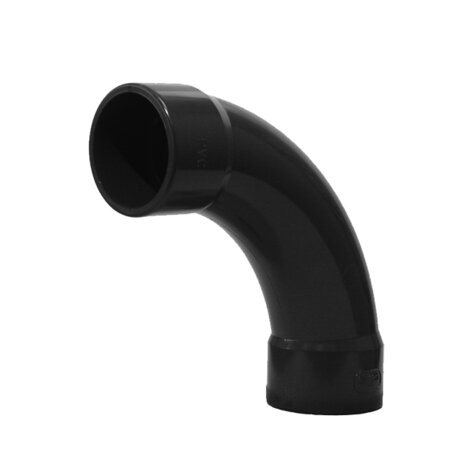

90° long radius bend (R=2d) with solvent weld sockets.
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.- | d | PN | E | L | Z | g | product.detail.attribute. |
|---|---|---|---|---|---|---|---|---|---|---|
| SIV020 | PVC-U system | Tvarovky | IH | 20 | 16 | 27 | 16 | 40,5 | 35 | - |
| SIV025 | PVC-U system | Tvarovky | IH | 25 | 16 | 33 | 19 | 50 | 55 | - |
| SIV032 | PVC-U system | Tvarovky | - | 32 | 16 | 41 | 22 | 65,5 | 100 | IH |
| SIV040 | PVC-U system | Tvarovky | - | 40 | 16 | 50 | 26 | 80,5 | 175 | IH |
| SIV050 | PVC-U system | Tvarovky | IH | 50 | 16 | 61 | 31 | 100,5 | 280 | - |
| SIV063 | PVC-U system | Tvarovky | - | 63 | 16 | 76 | 38 | 127 | 515 | IH |
| SIV075 | PVC-U system | Tvarovky | - | 75 | 16 | 94 | 44 | 150 | 1000 | I |
| SIV090 | PVC-U system | Tvarovky | - | 90 | 16 | 113 | 51 | 180 | 1770 | I |
| SIV110 | PVC-U system | Tvarovky | - | 110 | 16 | 137 | 61 | 220 | 2800 | I |
| SIV160 | PVC-U system | Tvarovky | - | 160 | 16 | 189 | 86 | 207 | 5020 | I |
