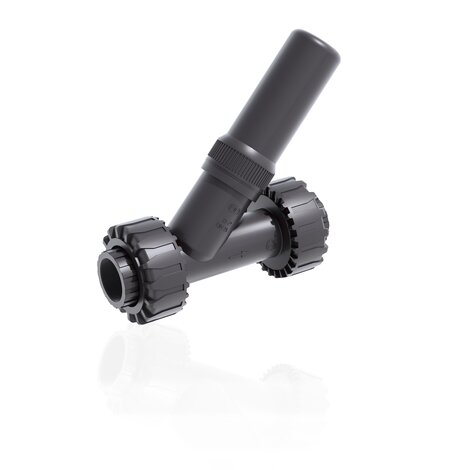

SVUIV - RELIEF VALVE
Relief valve with unionised metric plain socket ends for solvent welding
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs$required by industrial applications.
Další charakteristika:
- Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
- Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
- Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
- DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
- Machined high surface finish ball that guarantees a smooth operation and increased reliability
EPDM

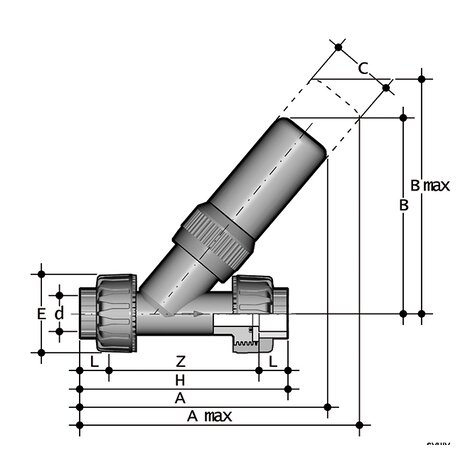

| Objednací číslo | Materiál | Kategorie | Série | d | DN | product.detail.attribute.A | product.detail.attribute.A max | B | product.detail.attribute.B max | C | E | H | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SVUIV020E | PVC-U system | Armatury | SV DN 15÷25 | 20 | 15 | 153 | 193 | 118 | 170 | 34 | 55 | 135 | 16 | 103 | 391 |
| SVUIV025E | PVC-U system | Armatury | SV DN 15÷25 | 25 | 20 | 191 | 271 | 150 | 220 | 40 | 66 | 158 | 19 | 120 | 633 |
| SVUIV032E | PVC-U system | Armatury | SV DN 15÷25 | 32 | 25 | 226 | 296 | 175 | 230 | 48 | 75 | 176 | 22 | 132 | 1106 |
FKM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | product.detail.attribute.A | product.detail.attribute.A max | B | product.detail.attribute.B max | C | E | H | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SVUIV020F | PVC-U system | Armatury | SV DN 15÷25 | 20 | 15 | 153 | 193 | 118 | 170 | 34 | 55 | 135 | 16 | 103 | 391 |
| SVUIV025F | PVC-U system | Armatury | SV DN 15÷25 | 25 | 20 | 191 | 271 | 150 | 220 | 40 | 66 | 158 | 19 | 120 | 633 |
| SVUIV032F | PVC-U system | Armatury | SV DN 15÷25 | 32 | 25 | 226 | 296 | 175 | 230 | 48 | 75 | 176 | 22 | 132 | 1106 |
- Connection system for solvent weld, threaded and flanged joints
- Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
- Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
- PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
- Option of dismounting downstream pipes with the valve in the closed position
- Floating full bore ball with high surface finish
- Integrated bracket for valve anchoring
- Ball seat carriers can be adjusted using the Easytorque adjustment kit
- Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
