TBM
FITTINGS FOR BUTT WELDING - EQUAL ENDS

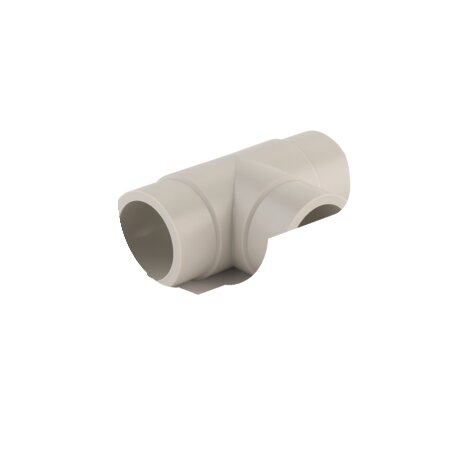

90° Tee, short spigot for butt welding SDR 17,6 - S 5
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

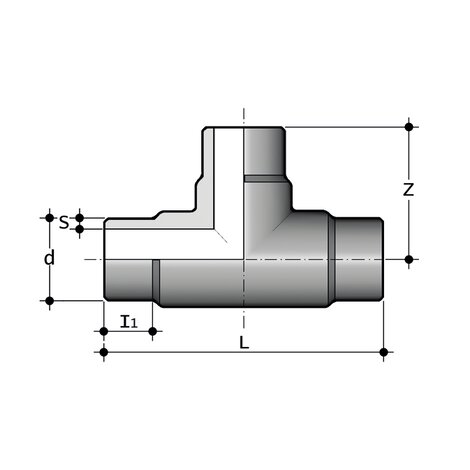

| Objednací číslo | d | product.detail.attribute.I[5:1] | L | s | Z | g |
|---|---|---|---|---|---|---|
| TBM17050 | 50 | 25 | 124 | 3 | 62 | 80 |
| TBM17063 | 63 | 29 | 156 | 3,6 | 78 | 175 |
| TBM17075 | 75 | 33 | 180 | 4 | 90 | 295 |
| TBM17090 | 90 | 23 | 200 | 5,1 | 100 | 480 |
| TBM17110 | 110 | 43 | 240 | 6,3 | 120 | 790 |
| TBM17125 | 125 | 26 | 250 | 7,1 | 125 | 1150 |
| TBM17140 | 140 | 32 | 280 | 8 | 140 | 1455 |
| TBM17160 | 160 | 40 | 320 | 9,1 | 160 | 2170 |
| TBM17180 | 180 | 73 | 390 | 10,2 | 195 | 3315 |
| TBM17200 | 200 | 64 | 430 | 11,4 | 215 | 4600 |
| TBM17225 | 225 | 72 | 490 | 12,8 | 245 | 6530 |
| TBM17250 | 250 | 86 | 550 | 14,2 | 275 | 8145 |
| TBM17280 | 280 | 105 | 620 | 15,9 | 310 | 13000 |
| TBM17315 | 315 | 111 | 700 | 17,9 | 350 | 18375 |
| TBM17355 | 355 | 103 | 690 | 20,1 | 345 | 21900 |
| TBM17400 | 400 | 105 | 734 | 22,7 | 367 | 26300 |
| TBM17450 | 450 | 138 | 838 | 25,5 | 419 | 42715 |
| TBM17500 | 500 | 165 | 954 | 28,3 | 477 | 59500 |
