TIF

FITTINGS FOR SOCKET WELDING - EQUAL SOCKET

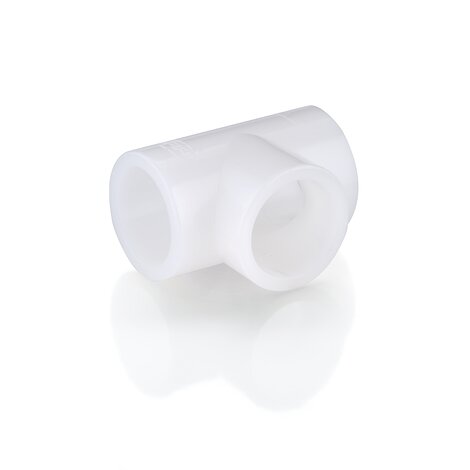

90° Tee for socket welding

Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

Zpět Produktový list

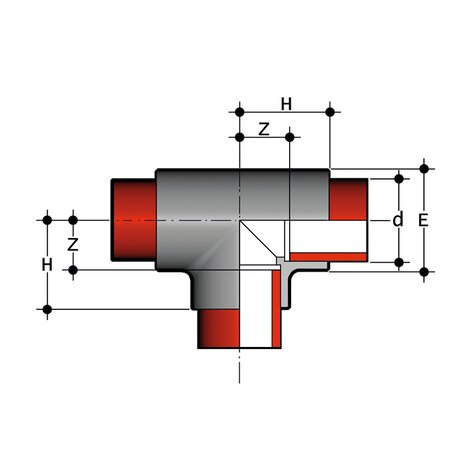

Objednací číslo	Materiál	Kategorie	d	PN	E	H	Z	g
TIF016	PVDF system	Tvarovky	16	16	22	23	10	18
TIF020	PVDF system	Tvarovky	20	16	28	27	13	35
TIF025	PVDF system	Tvarovky	25	16	33	32	16	55
TIF032	PVDF system	Tvarovky	32	16	41	37	19	90
TIF040	PVDF system	Tvarovky	40	16	51	43	22	150
TIF050	PVDF system	Tvarovky	50	16	63	52	29	270
TIF063	PVDF system	Tvarovky	63	16	79	63	35	470
TIF075	PVDF system	Tvarovky	75	16	93	71	40	665
TIF090	PVDF system	Tvarovky	90	16	109	82	46	1025
TIF110	PVDF system	Tvarovky	110	16	133	99	58	1800
