VKDIC - DUAL BLOCK® 2-WAY BALL VALVE

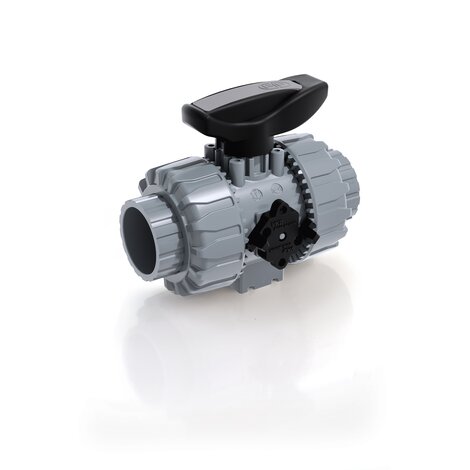

DUAL BLOCK® 2-way ball valve with female ends for solvent welding, metric series
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs$required by industrial applications.

Další charakteristika:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Zpět Produktový list
VKDIC - DUAL BLOCK® 2-WAY BALL VALVE
Disegno tecnico della valvola a sfera VKDI, VKDL, VKDA, VKDJ DN 10:50
VKDIC - DUAL BLOCK® 2-WAY BALL VALVE
Disegno tecnico della valvola a sfera VKDI, VKDL, VKDA, VKDJ DN 10:50

EPDM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKDIA016E ABS systém Armatury VKD DN 10÷50 16 10 16 54 29 67 40 54 103 65 14 75 234
VKDIA020E ABS systém Armatury VKD DN 10÷50 20 15 16 54 29 67 40 54 103 65 16 71 223
VKDIA025E ABS systém Armatury VKD DN 10÷50 25 20 16 65 34,5 85 49 65 115 70 19 77 358
VKDIA032E ABS systém Armatury VKD DN 10÷50 32 25 16 69,5 39 85 49 73 128 78 22 84 476
VKDIA040E ABS systém Armatury VKD DN 10÷50 40 32 16 82,5 46 108 64 86 146 88 26 94 753
VKDIA050E ABS systém Armatury VKD DN 10÷50 50 40 16 89 52 108 64 98 164 93 31 102 1007
VKDIA063E ABS systém Armatury VKD DN 10÷50 63 50 16 108 62 134 76 122 199 111 38 123 1717

FKM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKDIA016F ABS systém Armatury VKD DN 10÷50 16 10 16 54 29 67 40 54 103 65 14 75 234
VKDIA020F ABS systém Armatury VKD DN 10÷50 20 15 16 54 29 67 40 54 103 65 16 71 223
VKDIA025F ABS systém Armatury VKD DN 10÷50 25 20 16 65 34,5 85 49 65 115 70 19 77 358
VKDIA032F ABS systém Armatury VKD DN 10÷50 32 25 16 69,5 39 85 49 73 128 78 22 84 476
VKDIA040F ABS systém Armatury VKD DN 10÷50 40 32 16 82,5 46 108 64 86 146 88 26 94 753
VKDIA050F ABS systém Armatury VKD DN 10÷50 50 40 16 89 52 108 64 98 164 93 31 102 1007
VKDIA063F ABS systém Armatury VKD DN 10÷50 63 50 16 108 62 134 76 122 199 111 38 123 1717
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
