VKDOAC - DUAL BLOCK® 2-WAY BALL VALVE

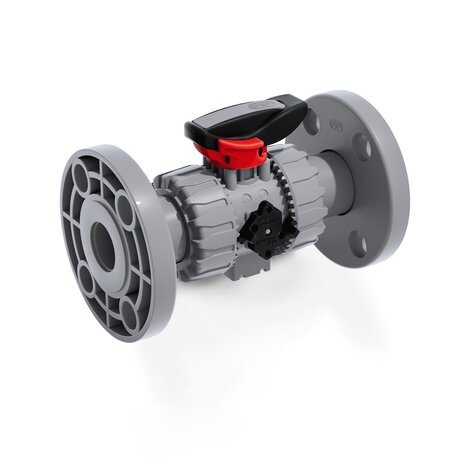

DUAL BLOCK® 2-way ball valve with fixed flanges, drilled ANSI B16.5 cl.150 #FF
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications.
Další charakteristika:
- Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
- Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
- Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
- DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
- Machined high surface finish ball that guarantees a smooth operation and increased reliability
EPDM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | B | B (5:1) | C | C (5:1) | product.detail.attribute.F | product.detail.attribute.f | H | H (5:1) | product.detail.attribute.Sp | product.detail.attribute.U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDOAC012E | PVC-C system | Armatury | VKD DN 10÷50 | 1/2” | 15 | 16 | 54 | 29 | 67 | 40 | 60,3 | 15,9 | 143 | 65 | 11 | 4 | 481,1 |
| VKDOAC034E | PVC-C system | Armatury | VKD DN 10÷50 | 3/4” | 20 | 16 | 65 | 34,5 | 85 | 49 | 69,9 | 15,9 | 172 | 70 | 13,5 | 4 | 663,1 |
| VKDOAC100E | PVC-C system | Armatury | VKD DN 10÷50 | 1” | 25 | 16 | 69,5 | 39 | 85 | 49 | 79,4 | 15,9 | 187 | 78 | 14 | 4 | 895,9 |
| VKDOAC114E | PVC-C system | Armatury | VKD DN 10÷50 | 1” 1/4 | 32 | 16 | 82,5 | 46 | 108 | 64 | 88,9 | 15,9 | 190 | 88 | 14 | 4 | 1379 |
| VKDOAC112E | PVC-C system | Armatury | VKD DN 10÷50 | 1” 1/2 | 40 | 16 | 89 | 52 | 108 | 64 | 98,4 | 15,9 | 212 | 93 | 16 | 4 | 1761 |
| VKDOAC200E | PVC-C system | Armatury | VKD DN 10÷50 | 2” | 50 | 16 | 108 | 62 | 134 | 76 | 120,7 | 19,1 | 234 | 111 | 16 | 4 | 2741 |
FKM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | B | B (5:1) | C | C (5:1) | product.detail.attribute.F | product.detail.attribute.f | H | H (5:1) | product.detail.attribute.Sp | product.detail.attribute.U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDOAC012F | PVC-C system | Armatury | VKD DN 10÷50 | 1/2” | 15 | 16 | 54 | 29 | 67 | 40 | 60,3 | 15,9 | 143 | 65 | 11 | 4 | 481,1 |
| VKDOAC034F | PVC-C system | Armatury | VKD DN 10÷50 | 3/4” | 20 | 16 | 65 | 34,5 | 85 | 49 | 69,9 | 15,9 | 172 | 70 | 13,5 | 4 | 663,1 |
| VKDOAC100F | PVC-C system | Armatury | VKD DN 10÷50 | 1” | 25 | 16 | 69,5 | 39 | 85 | 49 | 79,4 | 15,9 | 187 | 78 | 14 | 4 | 895,9 |
| VKDOAC114F | PVC-C system | Armatury | VKD DN 10÷50 | 1” 1/4 | 32 | 16 | 82,5 | 46 | 108 | 64 | 88,9 | 15,9 | 190 | 88 | 14 | 4 | 1379 |
| VKDOAC112F | PVC-C system | Armatury | VKD DN 10÷50 | 1” 1/2 | 40 | 16 | 89 | 52 | 108 | 64 | 98,4 | 15,9 | 212 | 93 | 16 | 4 | 1761 |
| VKDOAC200F | PVC-C system | Armatury | VKD DN 10÷50 | 2” | 50 | 16 | 108 | 62 | 134 | 76 | 120,7 | 19,1 | 234 | 111 | 16 | 4 | 2741 |
- Connection system for solvent weld, threaded and flanged joints
- Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
- Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
- PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
- Option of dismounting downstream pipes with the valve in the closed position
- Floating full bore ball with high surface finish
- Integrated bracket for valve anchoring
- Ball seat carriers can be adjusted using the Easytorque adjustment kit
- Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
