VKRBEV - DUAL BLOCK® regulating ball valve
Dual Block® regulating ball valve with PE100 SDR 11 male end connectors for butt welding or electrofusion (CVDE)
The VKR DUAL BLOCK® valve combines high reliability and safety aspects typical of VKD full bore ball valves with the new flow adjustment function with typical linear curve that meets the most stringent needs typical of industrial applications.
Další charakteristika:
- HIPVC ergonomic multifunctional handle with position indicator and tool to adjust the ball seat carrier
- Flow direction and opening angle indication plate with graduated scale with 5° detail for clear and accurate readings
- 90° operating angle that permits the use of standard quarter turn actuators
- The patented ball design provides linear flow adjustment throughout its range of operation even when the valve is open just a few degrees and guarantees minimum pressure drops
- Patented DUAL BLOCK® system: prevents union nuts from loosening even under extreme operating conditions: e.g. vibration or thermal expansion
EPDM

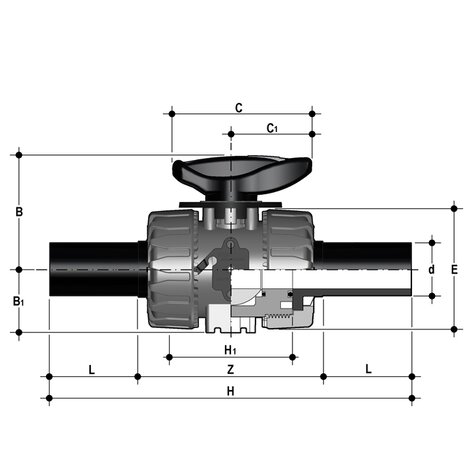

| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | B | B (5:1) | C | C (5:1) | E | H | H (5:1) | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKRBEV020E | PVC-U system | Armatury | VKR DN 10÷50 | 20 | 15 | 16 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
| VKRBEV025E | PVC-U system | Armatury | VKR DN 10÷50 | 25 | 20 | 16 | 65 | 34,5 | 85 | 49 | 65 | 213 | 70 | 54 | 106 | 340 |
| VKRBEV032E | PVC-U system | Armatury | VKR DN 10÷50 | 32 | 25 | 16 | 69,5 | 39 | 85 | 49 | 73 | 228 | 78 | 56 | 117 | 443 |
| VKRBEV040E | PVC-U system | Armatury | VKR DN 10÷50 | 40 | 32 | 16 | 82,5 | 46 | 108 | 64 | 86 | 247 | 88 | 56 | 131 | 693 |
| VKRBEV050E | PVC-U system | Armatury | VKR DN 10÷50 | 50 | 40 | 16 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
| VKRBEV063E | PVC-U system | Armatury | VKR DN 10÷50 | 63 | 50 | 16 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
FKM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | B | B (5:1) | C | C (5:1) | E | H | H (5:1) | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKRBEV020F | PVC-U system | Armatury | VKR DN 10÷50 | 20 | 15 | 16 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
| VKRBEV025F | PVC-U system | Armatury | VKR DN 10÷50 | 25 | 20 | 16 | 65 | 34,5 | 85 | 49 | 65 | 213 | 70 | 54 | 106 | 340 |
| VKRBEV032F | PVC-U system | Armatury | VKR DN 10÷50 | 32 | 25 | 16 | 69,5 | 39 | 85 | 49 | 73 | 228 | 78 | 56 | 117 | 443 |
| VKRBEV040F | PVC-U system | Armatury | VKR DN 10÷50 | 40 | 32 | 16 | 82,5 | 46 | 108 | 64 | 86 | 247 | 88 | 56 | 131 | 693 |
| VKRBEV050F | PVC-U system | Armatury | VKR DN 10÷50 | 50 | 40 | 16 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
| VKRBEV063F | PVC-U system | Armatury | VKR DN 10÷50 | 63 | 50 | 16 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
- Connection system for solvent weld, threaded and flanged joints
- Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise the axial force effect
- Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
- PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
- Option of dismounting downstream pipes with the valve in the closed position
- High surface finish stem with double O-Ring and double connection key to ball
- Integrated bracket for valve anchoring
- Ball seat carrier can be adjusted using the Easytorque adjustment kit
- Actuation option: version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position
- Valve suitable for carrying fluids that are clean and free of suspended particles
