VRIM - Check valve
Check valve with female ends for socket welding, metric series
The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
EPDM

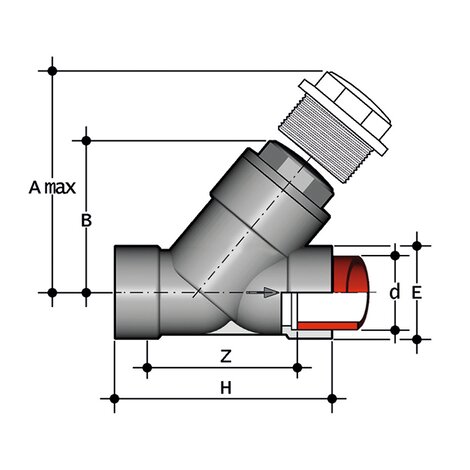

| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.A max | B | E | H | product.detail.attribute.K | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRIM075E | PP-H system | Armatury | VR DN 10÷100 | 75 | 65 | 6 | 300 | 176 | 103 | 241 | 96 | 179 | 2450 |
| VRIM090E | PP-H system | Armatury | VR DN 10÷100 | 90 | 80 | 4 | 325 | 192 | 115 | 260 | 105 | 189 | 3130 |
FKM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.A max | B | E | H | product.detail.attribute.K | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRIM075F | PP-H system | Armatury | VR DN 10÷100 | 75 | 65 | 6 | 300 | 176 | 103 | 241 | 96 | 179 | 2450 |
| VRIM090F | PP-H system | Armatury | VR DN 10÷100 | 90 | 80 | 4 | 325 | 192 | 115 | 260 | 105 | 189 | 3130 |
- Connection system for weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
