VRUIM - Check valve
Check valve with female union ends for socket welding, metric series
The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
EPDM

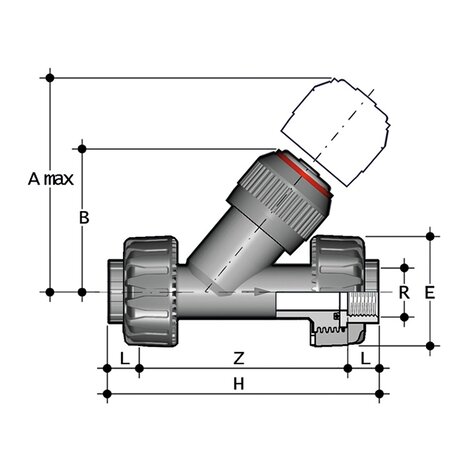

| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.A max | B | E | H | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUIM020E | PP-H system | Armatury | VR DN 10÷100 | 20 | 15 | 10 | 125 | 71 | 55 | 138 | 109 | 165 |
| VRUIM025E | PP-H system | Armatury | VR DN 10÷100 | 25 | 20 | 10 | 145 | 83 | 66 | 157 | 125 | 227 |
| VRUIM032E | PP-H system | Armatury | VR DN 10÷100 | 32 | 25 | 10 | 165 | 94 | 74 | 179 | 143 | 380 |
| VRUIM040E | PP-H system | Armatury | VR DN 10÷100 | 40 | 32 | 10 | 190 | 109 | 86 | 205 | 164 | 645 |
| VRUIM050E | PP-H system | Armatury | VR DN 10÷100 | 50 | 40 | 10 | 210 | 119 | 99 | 244 | 197 | 915 |
| VRUIM063E | PP-H system | Armatury | VR DN 10÷100 | 63 | 50 | 10 | 240 | 143 | 120 | 294 | 239 | 1555 |
FKM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.A max | B | E | H | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUIM020F | PP-H system | Armatury | VR DN 10÷100 | 20 | 15 | 10 | 125 | 71 | 55 | 138 | 109 | 165 |
| VRUIM025F | PP-H system | Armatury | VR DN 10÷100 | 25 | 20 | 10 | 145 | 83 | 66 | 157 | 125 | 227 |
| VRUIM032F | PP-H system | Armatury | VR DN 10÷100 | 32 | 25 | 10 | 165 | 94 | 74 | 179 | 143 | 380 |
| VRUIM040F | PP-H system | Armatury | VR DN 10÷100 | 40 | 32 | 10 | 190 | 109 | 86 | 205 | 164 | 645 |
| VRUIM050F | PP-H system | Armatury | VR DN 10÷100 | 50 | 40 | 10 | 210 | 119 | 99 | 244 | 197 | 915 |
| VRUIM063F | PP-H system | Armatury | VR DN 10÷100 | 63 | 50 | 10 | 240 | 143 | 120 | 294 | 239 | 1555 |
- Connection system for weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
