VRUOM - Check valve
Check valve with union ends and fixed flanges, drilled EN/ISO/DIN PN10/16
The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
EPDM

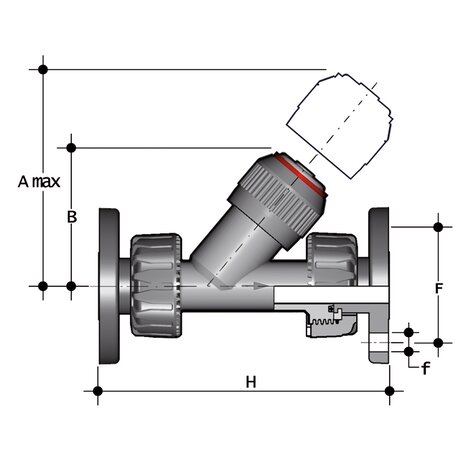

| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.A max | B | product.detail.attribute.F | product.detail.attribute.f | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUOM020E | PP-H system | Armatury | VR DN 10÷100 | 20 | 15 | 10 | 125 | 72 | 65 | 14 | 163 | 265 |
| VRUOM025E | PP-H system | Armatury | VR DN 10÷100 | 25 | 20 | 10 | 145 | 84 | 75 | 14 | 193 | 327 |
| VRUOM032E | PP-H system | Armatury | VR DN 10÷100 | 32 | 25 | 10 | 165 | 95 | 85 | 14 | 211 | 480 |
| VRUOM040E | PP-H system | Armatury | VR DN 10÷100 | 40 | 32 | 10 | 190 | 111 | 100 | 18 | 244 | 795 |
| VRUOM050E | PP-H system | Armatury | VR DN 10÷100 | 50 | 40 | 10 | 210 | 120 | 110 | 18 | 277 | 1065 |
| VRUOM063E | PP-H system | Armatury | VR DN 10÷100 | 63 | 50 | 10 | 240 | 139 | 125 | 18 | 331 | 1705 |
FKM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.A max | B | product.detail.attribute.F | product.detail.attribute.f | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUOM020F | PP-H system | Armatury | VR DN 10÷100 | 20 | 15 | 10 | 125 | 72 | 65 | 14 | 163 | 265 |
| VRUOM025F | PP-H system | Armatury | VR DN 10÷100 | 25 | 20 | 10 | 145 | 84 | 75 | 14 | 193 | 327 |
| VRUOM032F | PP-H system | Armatury | VR DN 10÷100 | 32 | 25 | 10 | 165 | 95 | 85 | 14 | 211 | 480 |
| VRUOM040F | PP-H system | Armatury | VR DN 10÷100 | 40 | 32 | 10 | 190 | 111 | 100 | 18 | 244 | 795 |
| VRUOM050F | PP-H system | Armatury | VR DN 10÷100 | 50 | 40 | 10 | 210 | 120 | 110 | 18 | 277 | 1065 |
| VRUOM063F | PP-H system | Armatury | VR DN 10÷100 | 63 | 50 | 10 | 240 | 139 | 125 | 18 | 331 | 1705 |
- Connection system for weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
